Disc brake cassette

In detail:

Data	Voltage		24V/36V/48V
	Power		250W~500W
	Speed		15km/h~35km/h
	Maximum Torque		60N.m
	Maximum Efficiency		80%
	Wheel Size		20"-28"
	Gear Ratio		1∶5
	Pair of Poles		8
	Noisy		<55dB
	Weight		3.5kg

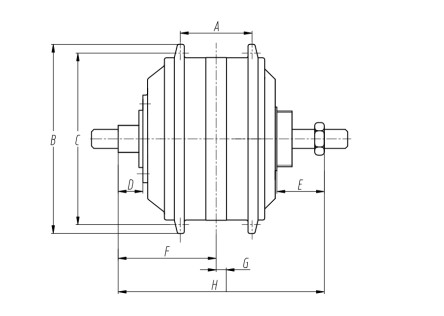

Dimension	A		38.5
	B		180
	C		168
	D		15
	E		40
	F		62
	G		6.5
	H		140
Installation	Position		Rear
	Brakes		Disc-brake
	Cable Position		Right
